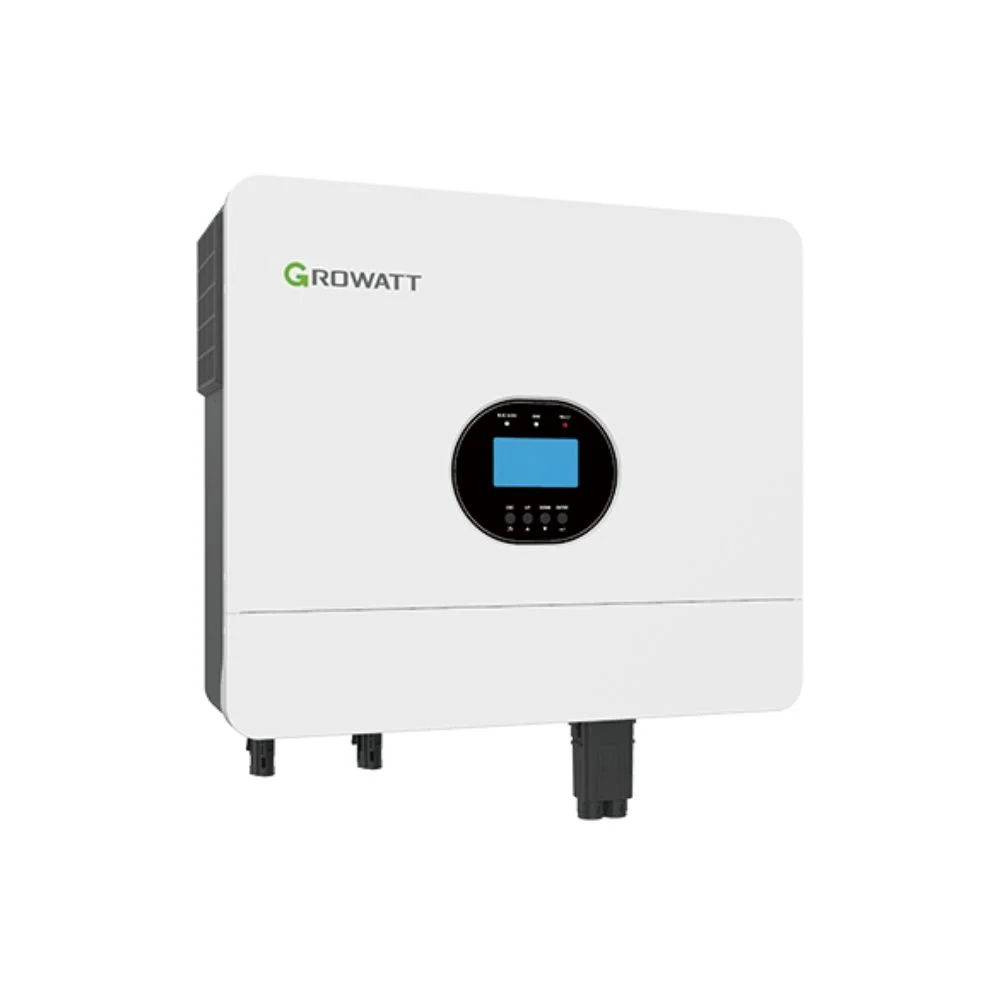

Growatt SPF 6000 ES Plus – 6kW Off-Grid Hybrid Inverter
Technical Highlights:
| Model | Growatt SPF 6000 ES plus |
| Rated Power | 6000VA / 6000W |
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-acid |
⚡ Frequently Bought Together
Complete your solar installation with complementary companion hardware and save with combo pricing.
Rated Power: 6000VA / 6000W
Battery Voltage: 48VDC
Battery Type: Lithium / Lead-acid
Waveform: Pure sine wave
Parallel Capability: Yes, up to 6 units
Brand: Growatt Model: Growatt SPF 6000 ES plus Working grid, solar & battery power efficiently Supports energy storage & real-time monitoring Ideal for residential & small commercial solar systems 2 years warranty Growatt SPF 6000 ES Plus – 6kW Off-Grid Hybrid Inverter
| Model | Growatt SPF 6000 ES plus |
| Rated Power | 6000VA / 6000W |
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-acid |
| Waveform | Pure sine wave |
| Peak Efficiency | 90% |
| Output Voltage | 230VAC ±5% |
| Transfer Time | 10ms typical, 20ms max |
| Protection | Overload, Short Circuit, Over Temperature, Battery Protection |
| Warranty | 5 Years Standard Warranty |
| Parallel Capability | Yes, up to 6 units |
| AC Voltage Regulation | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Max. PV Array Power | 8000W |
| MPPT Range | 120VDC ~ 450VDC |
| MPPT Trackers / Strings | 2 |
| Max. Input Current / Tracker | 16A |
| Max. PV Open Circuit Voltage | 500VDC |
| Max. Solar Charge Current | 100A |
| AC Charge Current | 80A |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170–280VAC (PCs); 90–280VAC (Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| Protection Degree | IP20 |
| Dimensions (W × H × D) | 460 × 395 × 132 mm |
| Net Weight | 13.5 kg |
| Humidity | 5% to 95% RH (non-condensing) |
| Altitude | < 2000 m |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | −15°C to 60°C |
